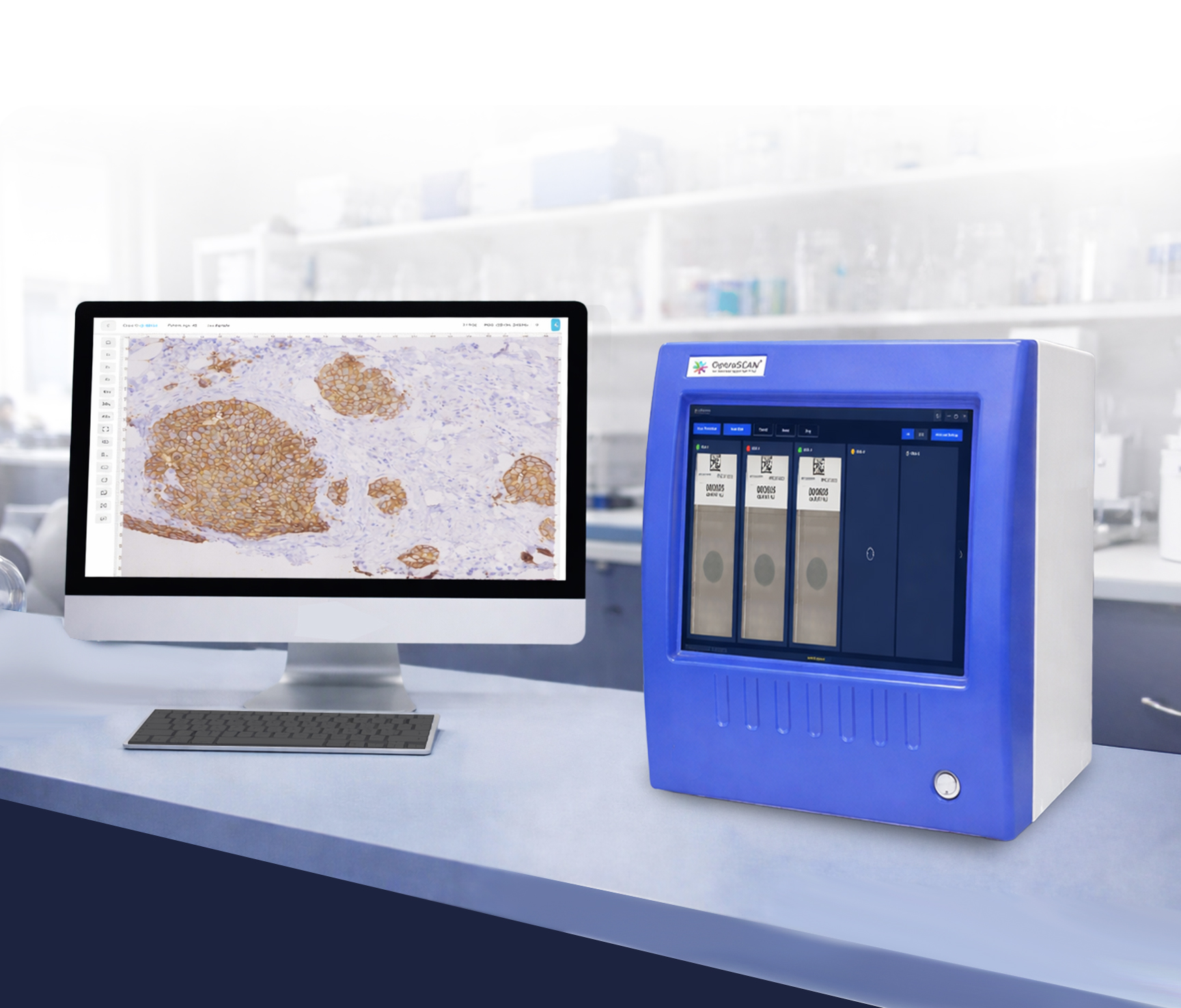

Engineered for labs that need higher throughput in a compact footprint. 15 slides, automated tissue detection, and lightning-fast scan times — with full software integration out of the box.
Intelligent tissue detection ensures only relevant areas are scanned, reducing time waste and optimizing throughput across all 15 slides.
Captures high-resolution whole slide images with exceptional clarity at 20× or 40×, using OptraSCAN's patented composite imaging technology plus Z-stacking for multi-focal-plane precision.
Cloud-enabled for flexible storage, archiving, and management. Includes IMAGEPath for image management and TELEPath for remote consultations — seamless digital pathology from scan to report.
| Specification | Detail |
|---|---|
| Imaging Mode | Brightfield |
| Slide Capacity | 15 (Brightfield), 7 (Frozen Section) |
| Scan Time (15×15mm) | 40s at 20× | 90s at 40× |
| Slide Formats | Standard 1×3″ |
| Magnification | 20×, 40× |
| Image Output | JPEG2000, TIFF, oTIFF, DICOM |
| Weight | 55 lbs (25 kg) |
| Dimensions | W: 11.2″, L: 17.3″, H: 15.7″ |
| Tissue Samples | Cytology, histology, hematology, frozen section, special stains, sputum |
| AI / Software | Fully compatible with OptraSCAN IMS & AI analytics |
See how the 15-slide OS-Lite can accelerate your pathology workflow with automated scanning and built-in AI.
Request a Demo
What labs most often ask us about digital pathology, our scanners, and how to get started.

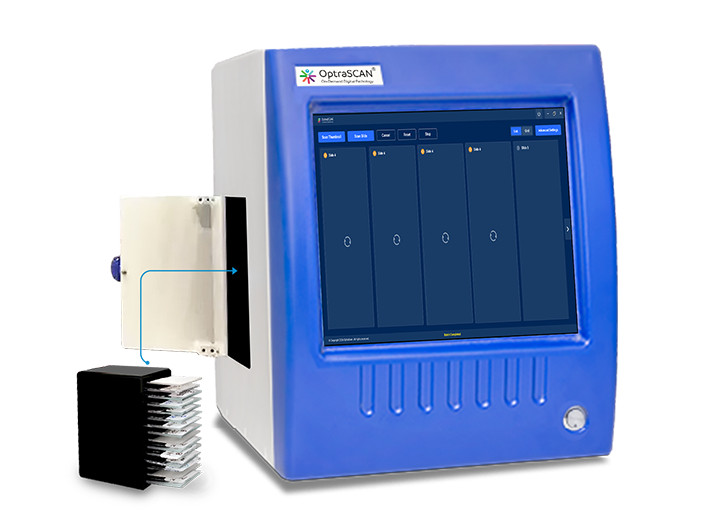

15 standard 1×3″ brightfield slides, or 7 frozen section slides using the custom OptraScan basket. It also accepts 20 Slide Sakura baskets.
About 40 seconds at 20× and 90 seconds at 40× for a 15×15 mm area.
The OS-Lite holds 15 slides versus 6 and scans roughly three times faster; the OS-SiX accepts larger mega-slide formats. Both weigh 55 lb.
Yes. Automated tissue detection scans only areas containing tissue, and Z-stacking captures multiple focal planes.
Yes. The OS-Lite is cloud-enabled and ships with IMAGEPath and TELEPath.
